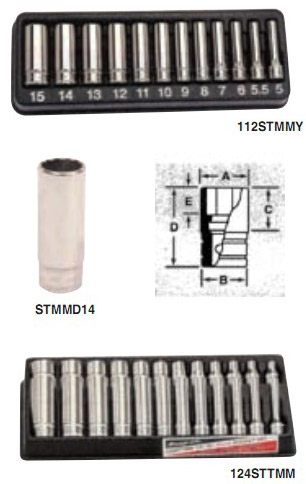

| 深套筒 |
 |
 |
 |
A |
B |
C |
D |
E |
| 4 |
STMM4* |
-- |
6.7 |
12.1 |
42.2 |
50.8 |
4.6 |
| 4.5 |
STMM4.5* |
-- |
7.2 |
12.1 |
42.2 |
50.8 |
4.6 |
| 5 |
STMM5* |
STMMD5* |
7.7 |
12.1 |
42.2 |
50.8 |
5.1 |
| 5.5 |
STMM5.5 |
STMMD5.5* |
8.3 |
12.1 |
42.2 |
50.8 |
5.3 |
| 6 |
STMM6 |
STMMD6 |
9.3 |
12.1 |
42.2 |
50.8 |
5.8 |
| 7 |
STMM7 |
STMMD7 |
10.5 |
12.1 |
42.2 |
50.8 |
6.1 |
| 8 |
STMM8 |
STMMD8 |
11.5 |
12.1 |
42.2 |
50.8 |
6.9 |
| 9 |
STMM9 |
STMMD9 |
12.7 |
12.1 |
38.1 |
50.8 |
7.4 |
| 10 |
STMM10 |
STMMD10 |
14.0 |
13.2 |
38.1 |
50.8 |
7.4 |
| 11 |
STMM11 |
STMMD11 |
15.2 |
14.6 |
38.1 |
50.8 |
9.4 |
| 12 |
STMM12 |
STMMD12 |
16.5 |
15.6 |
38.1 |
50.8 |
9.4 |
| 13 |
STMM13 |
STMMD13 |
17.6 |
16.7 |
38.1 |
50.8 |
9.4 |
| 14 |
STMM14 |
STMMD14 |
18.8 |
17.8 |
38.1 |
50.8 |
9.7 |
| 15 |
STMM15 |
STMMD15 |
20.4 |
19.4 |
38.1 |
50.8 |
9.1 |
| *常规6角 |
|
|
|
|
|
|
|
公制镀深套筒套件:
112TMMY 公制6角深套筒套件:STMM5 至STMM15(12件)(5至15mm)。
112STTMMDY 公制12角深套筒套件:STMMD5 至STMMD14(11件)(5至14mm)。
公制镀深套筒套件:
124TTMM 公制6角浅/深套筒套件:TMM4 至TMM14浅套筒(TMM4.5除外)。
加上STMM4至STMM14深套筒(除STMM4.5)(24件)(4.5至14mm)。 |
FLANK DRIVE® 万向套筒

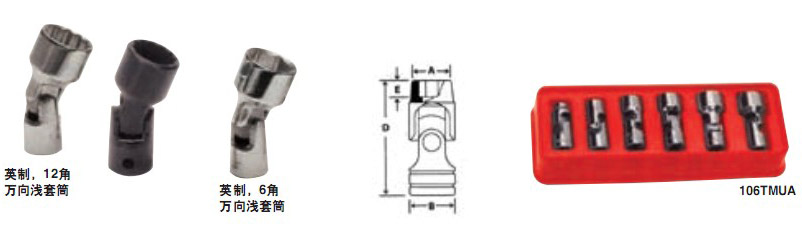

| 万向浅套筒 |
 |
|
|
 |
A |
B |
D |
E |
| 3/16 |
-- |
TMU61A* |
GTMU71A |
19/64 |
1/2 |
1 17/64 |
1/4 |
| 7/32 |
-- |
TMU71A* |
11/32 |
1/2 |
1 17/64 |
1/4 |
| 1/4 |
TMUSB81A |
TMU81B |
3/8 |
1/2 |
1 17/64 |
1/4 |
| 9/32 |
-- |
TMU91A |
27/64 |
1/2 |
1 5/16 |
9/32 |
| 5/16 |
TMUSB101A |
TMU101A |
15/32 |
1/2 |
1 11/32 |
9/32 |
| 11/32 |
-- |
TMU111A |
GTMU141A |
1/2 |
1/2 |
1 3/8 |
9/32 |
| 3/8 |
TMUSB121A |
TMU121A |
17/32 |
1/2 |
1 27/64 |
9/32 |
| 7/16 |
TMUSB141A |
TMU141A |
19/32 |
1/2 |
1 29/64 |
13/32 |
| 1/2 |
TMUSB161A |
TMU161A |
11/16 |
1/2 |
1 33/64 |
13/32 |
| 9/16 |
TMUSB181A |
TMU181A |
3/4 |
1/2 |
1 35/64 |
13/32 |
| *常规6角 |
|
|
|
|
|
|
|
镀万向深套筒套件:
106TMUSA 6角浅套筒套件:TMUS81A 至TMUS181A(除TMUS111A)(6件)(1/4“至9/16")。
106TMUA 12角浅套筒套件:TMUS81B至TMUS181A(除TMU91A和TMU111A)(6件)(1/4“至9/16")。 |
 |
|
