| 浅套筒 |
 |
 |
 |
A |
B |
D |
E |
| 8 |
FSUM8A |
-- |
11.9 |
17.2 |
43.1 |
6.4 |
| 10 |
FSUM10A |
FUM10A |
14.0 |
18.1 |
43.5 |
6.4 |
| 11 |
FSUM11A |
-- |
15.3 |
18.1 |
43.5 |
7.1 |
| 12 |
FSUM12A |
FUM12A |
16.8 |
18.1 |
45.5 |
7.9 |
| 13 |
FSUM13A |
FUM13A |
18.1 |
18.1 |
45.5 |
7.9 |
| 14 |
FSUM14A |
FUM14A |
18.9 |
18.1 |
47.9 |
8.9 |
| 15 |
FSUM15A |
FUM15A |
20.5 |
18.1 |
47.9 |
8.9 |
| 16 |
FSUM16A |
FUM16A |
21.3 |
18.1 |
47.9 |
10.2 |
| 17 |
FSUM17A |
FUM17A |
22.9 |
18.9 |
50.7 |
10.4 |
| 18 |
FSUM18A |
FUM18A |
24.5 |
18.9 |
50.7 |
10.7 |
| 19 |
FSUM19A |
FUM19A |
25.3 |
18.9 |
52.5 |
11.7 |
| 22 |
FSUM20A |
-- |
28.4 |
18.9 |
53.9 |
13.0 |
镀6角套筒套件:

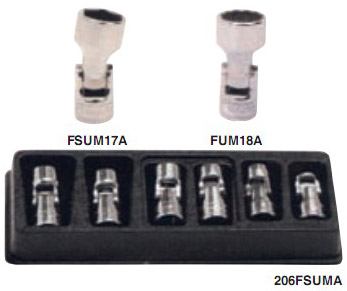

206FSUMA 公制6角浅套筒套件:FSUM10A至FSUM17A(FSUM11A和FSUM16A除外)(6件)(10至17mm)。
镀12角套筒套件:

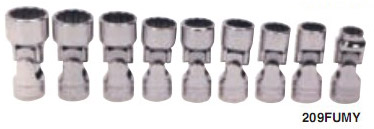

209FUMY 公制12角浅套筒套件:FUM10A至FUM19A(9件)(10至19mm)。 |
|
 |
 |
深套筒 |
 |
|
A |
B |
D |
E |
| 3/8 |
FSU12 |
9/16 |
11/16 |
2 13/32 |
3/8 |
| 7/16 |
FSU14 |
5/8 |
11/16 |
2 13/32 |
7/16 |
| 1/2 |
FSU16 |
23/32 |
11/16 |
2 13/32 |
15/32 |
| 9/16 |
FSU18 |
25/32 |
11/16 |
2 13/32 |
17/32 |
| 5/8 |
FSU20 |
27/32 |
11/16 |
2 13/32 |
9/16 |
| 11/16 |
FSU22 |
15/16 |
3/4 |
2 15/32 |
9/16 |
| 3/4 |
FSU24 |
1 |
3/4 |
2 15/32 |
9/16 |
镀6角套筒套件:

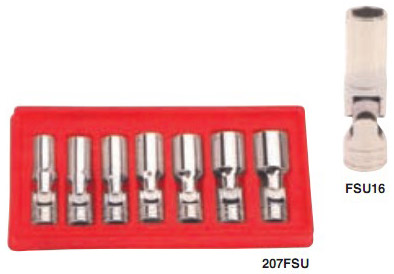

207FSU 6角深套筒套件:FSU12至FSU24(7件)(3/8“至3/4”)。 |
|
| 深套筒 |
| |
A |
B |
D |
E |
| 10 |
SFSUM10 |
14.4 |
18.1 |
63.6 |
7.4 |
| 11 |
SFSUM11 |
15.6 |
18.1 |
63.6 |
7.6 |
| 12 |
SFSUM12 |
17.1 |
18.1 |
63.6 |
8.1 |
| 13 |
SFSUM13 |
18.1 |
18.1 |
63.6 |
8.4 |
| 14 |
SFSUM14 |
18.9 |
18.1 |
63.6 |
9.1 |
| 15 |
SFSUM15 |
20.5 |
18.1 |
63.6 |
9.7 |
| 16 |
SFSUM16 |
21.3 |
18.1 |
63.6 |
10.4 |
| 17 |
SFSUM17 |
22.9 |
18.9 |
63.6 |
10.9 |
镀6角套筒套件:

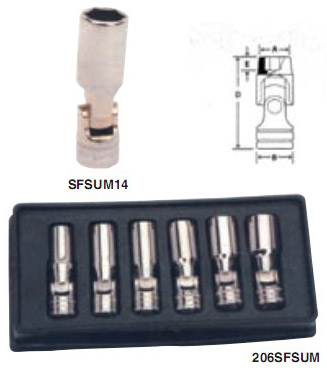

206SFSUM 公制6角深套筒套件:SFSUM10至SFSUM17(SFSUM11和SFSUM16除外)(6件)(10至17mm)。 |
|
 |
|
