浅套筒 |
 |
 |
 |
A |
B |
C |
D | E |
| 10 |
TWM10A |
SWM101A |
15.0 |
23.2 |
22.2 |
38.1 |
7.9 |
| 11 |
TWM11A |
SWM111A |
16.6 |
23.2 |
22.2 |
38.1 |
8.7 |
| 12 |
TWM12A |
SWM121A |
18.2 |
23.2 |
22.2 |
38.1 |
9.5 |
| 13 |
TWM13A |
SWM131A |
19.0 |
23.2 |
22.2 |
38.1 |
10.3 |
| 14 |
TWM14A |
SWM141A |
20.6 |
23.2 |
22.2 |
38.1 |
10.3 |
| 15 |
TWM15A |
SWM151A |
22.2 |
22.2 |
22.2 |
38.1 |
10.3 |
| 16 |
TWM16 |
SWM161 |
23.8 |
22.2 |
22.2 |
38.1 |
11.9 |
| 17 |
TWM17 |
SWM171 |
24.6 |
23.2 |
22.2 |
38.1 |
12.7 |
| 18 |
TWM18 |
SWM181 |
25.4 |
23.8 |
21.4 |
38.1 |
14.2 |
| 19 |
TWM19 |
SWM191 |
26.3 |
24.8 |
21.3 |
38.1 |
13.9 |
| 20 |
TWM20 |
SWM201 |
26.7 |
26.1 |
21.3 |
38.1 |
14.0 |
| 21 |
TWM21 |
SWM211 |
28.3 |
27.5 |
21.1 |
38.1 |
14.0 |
| 22 |
TWM22 |
SWM221 |
29.9 |
28.6 |
20.9 |
38.1 |
14.2 |
| 23 |
TWM23 |
SWM231 |
31.2 |
29.9 |
20.8 |
38.1 |
14.5 |
| 24 |
TWM24 |
SWM241 |
32.5 |
30.9 |
22.2 |
38.8 |
15.8 |
| 25 |
TWM25 |
SWM251 |
33.3 |
31.7 |
22.2 |
38.8 |
15.8 |
| 26 |
TWM26 |
SWM261 |
34.9 |
33.3 |
23.8 |
41.2 |
15.8 |
| 27 |
TWM27 |
SWM271 |
36.5 |
34.9 |
25.4 |
42.8 |
17.4 |
| 28 |
TWM28 |
SWM281 |
38.1 |
36.5 |
26.9 |
44.4 |
17.4 |
| 29 |
TWM29 |
SWM291 |
39.3 |
38.0 |
26.1 |
44.5 |
17.8 |
| 30 |
TWM30 |
SWM301 |
41.0 |
39.6 |
26.1 |
44.5 |
18.5 |
| 31 |
TWM31 |
SWM311 |
42.5 |
41.2 |
29.1 |
47.6 |
19.1 |
| 32 |
TWM32 |
SWM321 |
42.5 |
41.2 |
28.9 |
47.6 |
19.8 |
|

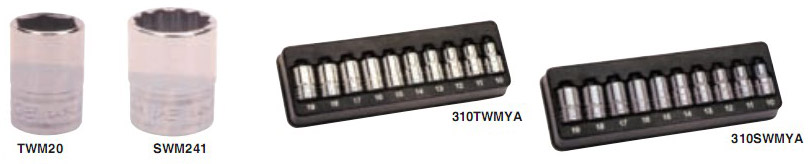

公制6角浅套筒套件:
313TWMYA:TWM12A至TWM24(13件)(12至24mm)。
310TWMYA:TWM10A至TWM19(10件)(10至19mm)。
公制12角浅套筒套件:
313SWMYA:SWM121A至SWM241(13件)(12至24mm)。
310SWMYA:SWM101A至SWM191(10件)(10至19mm)。
 |
 |
 |
 |
 |
A |
B |
C |
D |
E |
| 3/8 |
TS121A |
S121A |
GTS121A |
-- |
19/32 |
29/32 |
2 5/8 |
3 1/4 |
5/16 |
| 7/16 |
TS141A |
S141A |
GTS141A |
-- |
3/4 |
29/32 |
2 5/8 |
3 1/4 |
11/32 |
| 1/2 |
TS161A |
S161A |
GTS161A |
GS161A |
3/4 |
29/32 |
2 5/8 |
3 1/4 |
13/32 |
| 9/16 |
TS181A |
S181A |
GTS181A |
GS181A |
13/16 |
29/32 |
2 5/8 |
3 1/4 |
13/32 |
| 5/8 |
TS201 |
S201 |
GTS201 |
GS201 |
15/16 |
7/8 |
1 31/32 |
3 1/4 |
15/32 |
| 11/16 |
TS221 |
S221 |
GTS221 |
GS221 |
31/32 |
29/32 |
1 31/32 |
3 1/4 |
1/2 |
| 3/4 |
TS241 |
S241 |
GTS241 |
GS241 |
1 1/32 |
31/32 |
2 5/8 |
3 1/4 |
9/16 |
| 13/16 |
TS261 |
S261 |
GTS261 |
GS261 |
1 1/8 |
1 1/16 |
2 5/8 |
3 1/4 |
9/16 |
| 7/8 |
TS281 |
S281 |
GTS281 |
GS281 |
1 3/16 |
1 1/8 |
2 5/8 |
3 1/4 |
9/16 |
| 15/16 |
TS301 |
S301 |
GTS301 |
GS301 |
1 9/32 |
1 7/32 |
1 31/32 |
3 1/4 |
3/4 |
| 1 |
TS321 |
S321 |
GTS321 |
GS321 |
1 11/32 |
1 9/32 |
1 31/32 |
3 1/4 |
3/4 |
| 1 1/16 |
TS341 |
S341 |
GTS341 |
GS341 |
1 77/16 |
1 3/8 |
1 31/32 |
3 1/4 |
3/4 |
| 1 1/8 |
TS361 |
S361 |
GTS361 |
GS361 |
1 1/2 |
1 7/16 |
1 31/32 |
3 1/4 |
1 3/16 |
| 1 3/16 |
TS381 |
S381 |
GTS381 |
GS381 |
1 5/8 |
1 9/16 |
2 5/8 |
3 1/4 |
1 3/16 |
| 1 1/4 |
TS401 |
S401 |
GTS401 |
GS401 |
1 11/16 |
1 5/8 |
2 5/8 |
3 1/4 |
1 |
| 1 5/16 |
TS421 |
S421 |
-- |
-- |
1 3/4 |
1 11/16 |
2 9/16 |
3 1/4 |
1 |
| 1 3/8 |
TS441 |
S441 |
-- |
-- |
1 13/16 |
1 3/4 |
2 9/16 |
3 1/4 |
1 |
| 1 7/16 |
TS461 |
S461 |
-- |
-- |
1 15/16 |
1 7/8 |
2 5/8 |
3 1/4 |
1 |
| 1 1/2 |
TS481 |
S481 |
-- |
-- |
2 |
1 15/16 |
2 5/8 |
3 1/4 |
1 1/16 |
|
|
ASME/ANSI:B107.1-1993

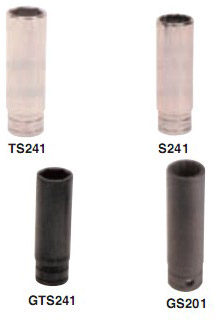

镀6角深套筒套件:
313TSYA 套筒套件:TS121A至TS361(13件)(3/8“至1 1/8”)。
工业6角深套筒套件:
314GTSYA 套筒套件:GTS121A至GTS361(13件)(3/8“至1 1/8”)。
镀12角深套筒套件:
313SYA 套筒套件:S121A至S361(13件)(3/8“至1 1/8”)。
 |
